Garmin GT360UHD Transducer for Spy Pole [010-03012-10]

GT360UHD Transducer for Spy™ Pole

SEE THE UNDERWATER WORLD LIKE NEVER BEFORE

Capture 360-degree imagery of the area around your boat with the GT360UHD transducer when mounted to your Spy™ pole.

• Capture crisp, Clear 360-Degree imagery
• See a bird's-eye view of what's beneath the surface
• Pair with your compatible Garmin chartplotter
• Get a live window into 3D imagery with Livescope™ sonar
• True motion technology integrates with GPS to keep scans true to location
• Select Auto, Manual or constant scanning modes

360-Degree ONEVÜ™ Sonar

Unlock the toughest underwater hiding spots with OneVü sonar, the crisp, clear 360-degree underwater imagery in 2D or 3D views.

Large Coverage Area

Scan and store up to a football-field size of imagery in a single power cycle. True Motion technology keeps your true location as you move within the scanned area.

Chartplotter Integration

Optimize your sonar from your compatible Garmin chartplotter with on-screen controls that let you change scanning modes, adjust sonar frequencies and select vivid color palettes.

Simple Installation

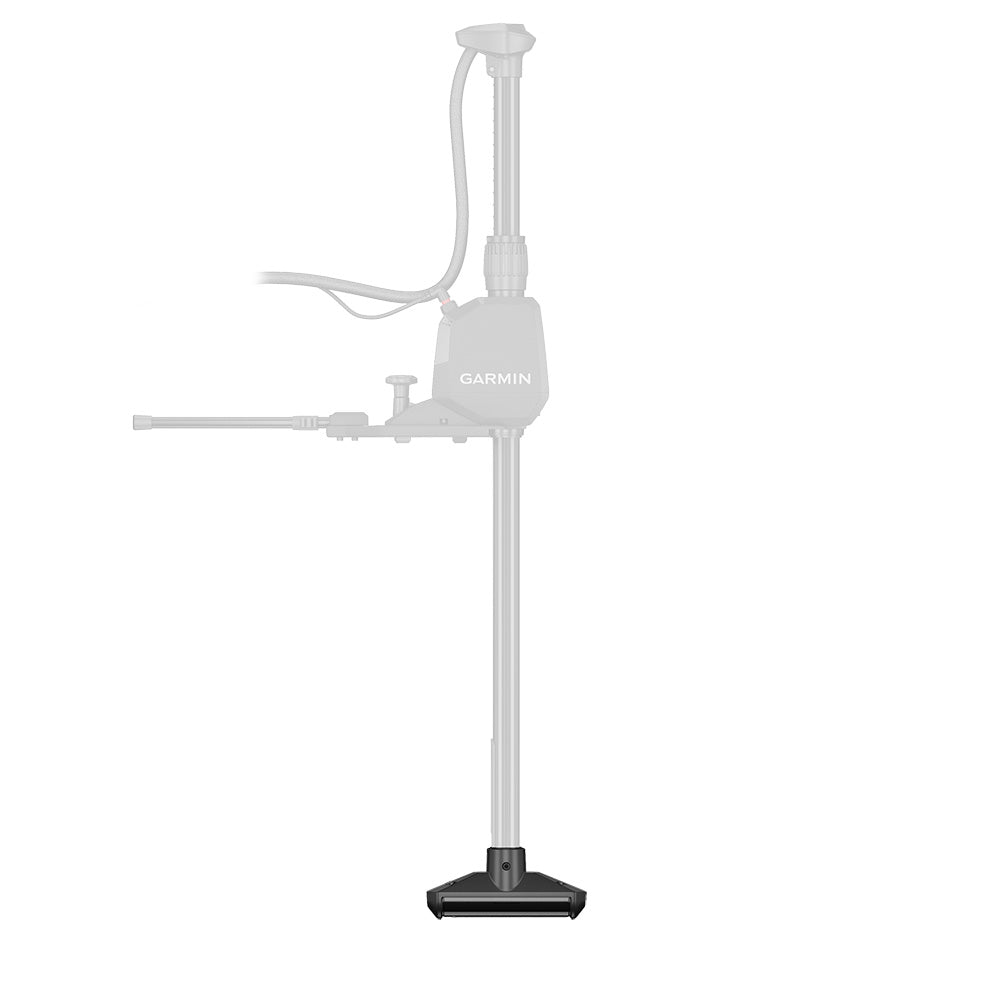

Easily mount your GT360UHD transducer onto your Spy pole and run your cables through the shaft.

Enchanced ONEVÜ™ Experience

Layer LiveScope live sonar over the OneVü sonar imagery to see an all-new 3D view — and a beam overlay to see where LiveScope is pointed in 2D mode.

Multiple Scanning Modes

Use your compatible Garmin chartplotter to select the scanning mode that best fits your style of fishing. Choose between auto, manual, or constant scan.

Features:

• Auto Scan: Automatically trigger a new scan when your boat travels to a new area.
• Manual Scan: Capture data only from the areas you want by manually initiating your scan.
• Constant Scan: Continually scan your boat’s surroundings for consistent data updates as you move.

Specifications:

• Transducer Frequency: OneVü/SideVü: 455 kHz, 800 kHz, 1070 kHz
• Transducer Power: 500w
• Transducer Beamwidth: OneVü/SideVü 0.52 x 52 @ 1000 kHz, 0.64 x 35 @ 800 kHz, 1.1 x 52 @ 455 kHz
• Transducer Maximum Depth: OneVü/SideVü: 500 ft range
• Transducer Cable Length: 20.3 ft (6.2m)
• Transducer Depth/Speed/Temp: Depth and Temp
• Transducer Number of Pins: 12
• OneVü Source: Yes

Specifications:

• Cable Length (Feet): 20.3'
• Pins: 12
• Speed Included: No
• Temperature: Yes
• Box Dimensions: 6"H x 9"W x 15"L WT: 5.65 lbs
• UPC: 753759345679
