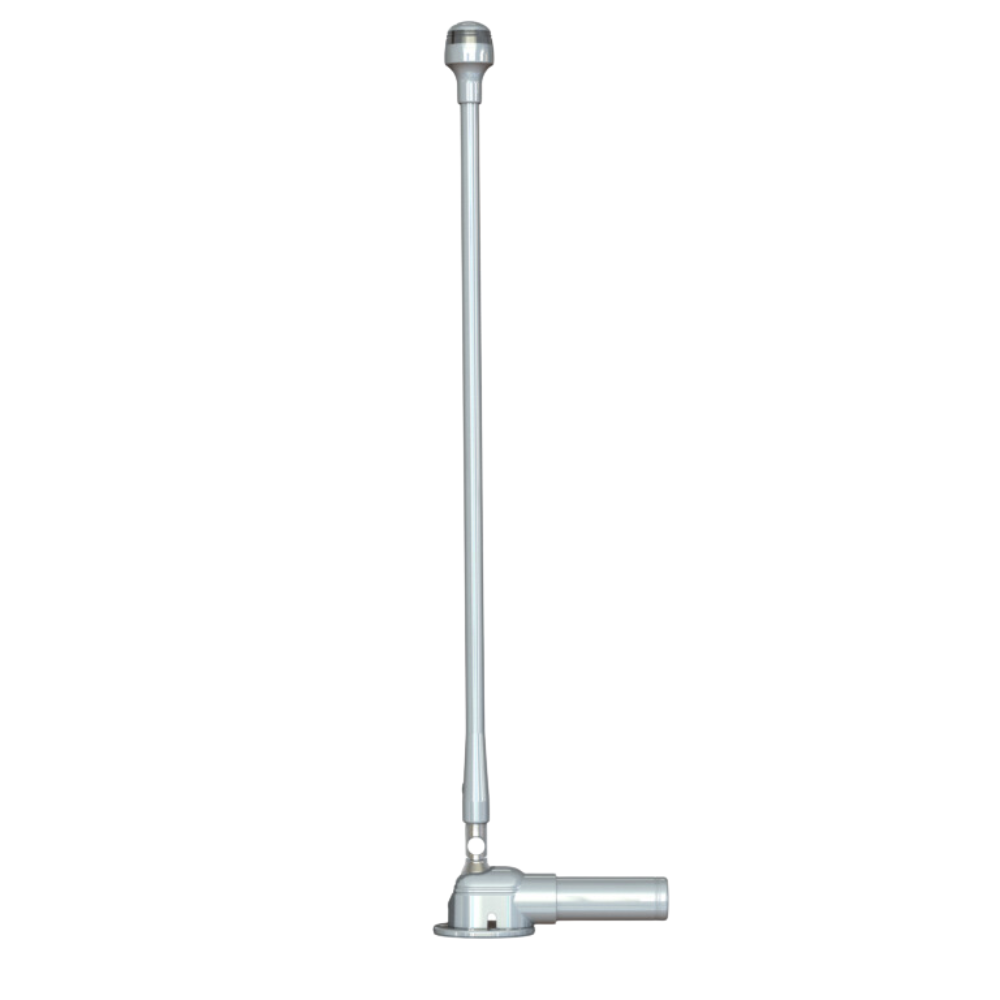

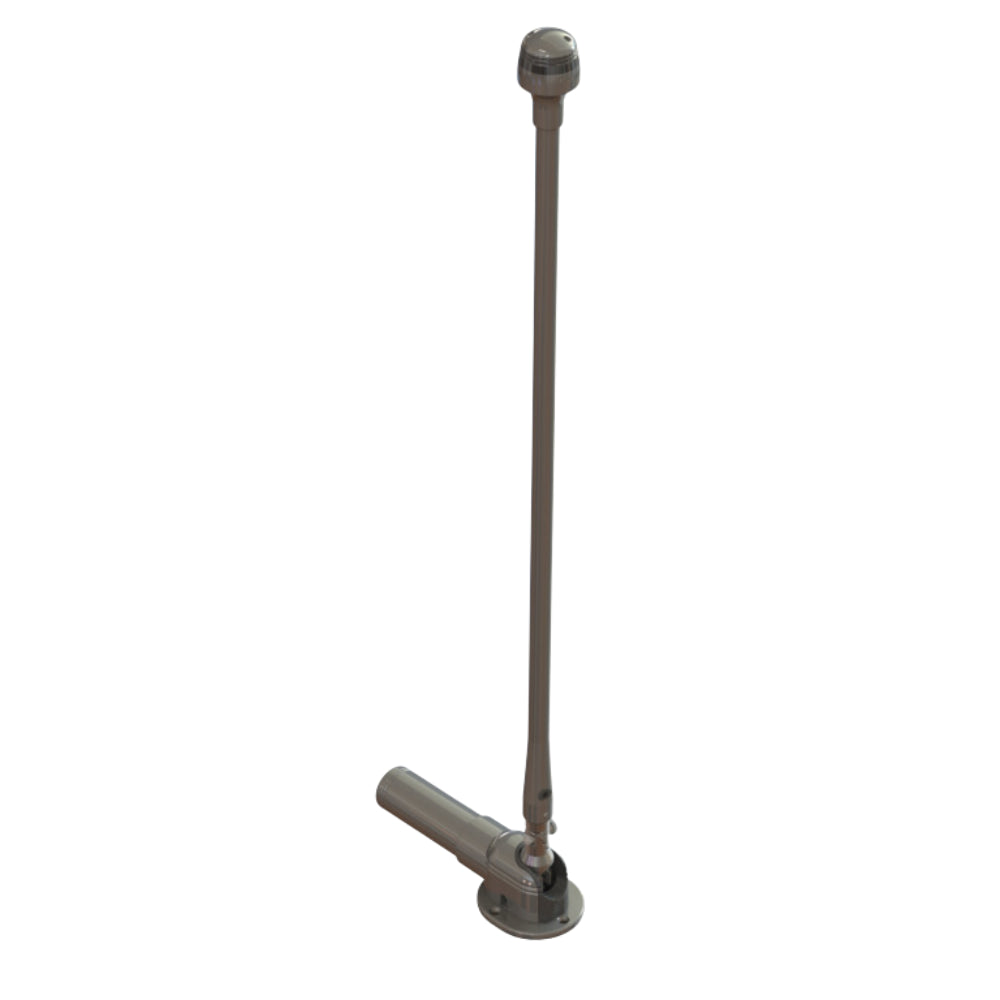

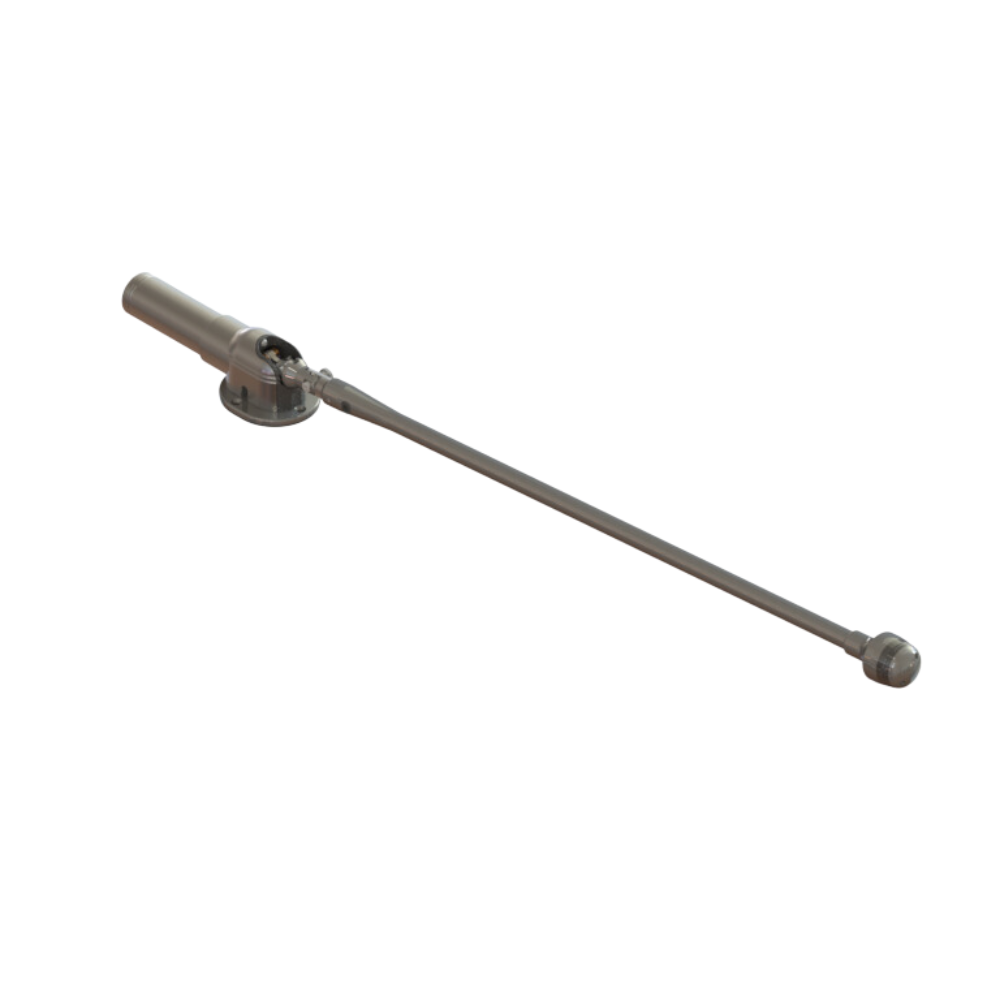

The Grand Slam 960 Electric Masthead Anchor Light offers enhanced safety, durability, and style. Building on the success of the GS-950, the Grand Slam-960 features a durable stainless-steel body and Type-316L stainless-steel breakaway pin for superior weather resistance. It incorporates a new stainless-steel anti-backlash linear screw drive for added durability. The oblong design accommodates a longer, more powerful motor for excellent performance at sea. Suitable for powered vessels up to 39’ (12 meters), the GS-960 meets the USCG's 3 nautical mile visibility requirement. Boaters can easily adjust their Masthead Anchor Light from the deck with a push-button operation, thanks to the auto-rotating stop feature and manual stop option. This is a fully electric unit with a hidden base wire inside the hardtop, which easily installs to the top’s surface. It has the same hole pattern as the GS-950, making upgrades possible, and fits all top thicknesses. The GS-960 lights run on 12 volts and consists of four 3-watt LED Cree chips driven by two Mean Well drivers.
Features and Benefits
Certified for USCG-required 3-nm
Meets NMMA/ABYC C-5 5.8 Standards requirements
NMMA Type Accepted Approved Product
Includes heavy-duty anodized aluminum tube, light and 6” lead of 20-gauge wire from the base
Reliable long-life LED’s
5-Watt Stern Light and 10-watt Anchor
Low-draw, 0.6 amps per light
Electronic Control Module (ECM) features an industry-standard On-Off-On control switch
ECM includes a 5A fuse for device protection
Comes with a 12” wire lead and water-sealed Deutsch connector, using 18-gauge wire from the base
Operates on 12-volt DC for lift and descent
No under-mount clearance needed
Polished stainless-steel body with a mirrored finish
Stainless-steel threaded screw drive ensures smooth lift and descent
High-torque, anti-backlash ball-bearing motor
Oil-lite bronze bushings for smooth operation
Integrated nylon knob on the stainless-steel breakaway pin allows for manual operation in case of power failure
