Fusion Apollo MS-RA800 Marine Stereo [010-02937-00]

Apollo™ MS-RA800 Marine Stereo

FUSION'S MOST ADVANCED MARINE STEREO EVER

It’s the most powerful and technologically advanced Fusion® marine stereo ever. With audiophile-level components and a built-in amplifier providing twice the power of the predecessor RA770, this system delivers lossless audio performance of unmatched clarity. Plus, its Wi-Fi® connectivity supports seamless AirPlay® audio streaming on your boat.

Features:

• Sleek, modern design features an edge-to-edge glass display
• Enjoy premium Wi-Fi streaming with high-resolution lossless audio
• Built-in Class-D amplifier boasts 50% more power output¹
• See quicker response with 8 times faster digital processing speed¹
• Share onboard audio sources with stereo grouping
• Remotely control your music from compatible devices

High-Resolution Audio

Our first marine stereo to support high-resolution lossless audio (up to 24-bit at 96 kHz), the RA800 offers unparalleled sound quality. It is also supported by Wi-Fi technology for seamless audio streaming.

Upgraded Internal AMP

The built-in Class-D amplifier can deliver 4 x 40 watts RMS (all channels driven) with less than 0.1% total harmonic distortion at 4 ohms, producing more than 50% more power output1 than its predecessor.

Higher-Resolution Display

The stereo’s 4.3-inch LCD touchscreen display offers notable improvements1 in image resolution, color saturation, viewing angles, and readability in bright daylight.

Stereo Networking

Connect your RA800 stereo with other Apollo Series stereos to create a network on your boat. Enjoy advanced features, including stereo grouping, combined volume control, power options, and Home Zone control.

Multiple Source Options

Take advantage of a wide variety of source options available, including AirPlay streaming from Apple®, BLUETOOTH® connectivity, HDMI ARC, DAB+ radio tuner, USB connections, AM/FM radio, and AUX inputs.

MFD Networking

Easily network your RA800 stereo with a compatible Garmin MFD via NMEA 2000® networking for integrated audio control at the helm. Or use the Fusion® Audio app to wirelessly control your music from a compatible Garmin smartwatch or other smart device.

Easy-Fit Installation

• Quick Switch From RA770 to RA800: With an identical form factor and wiring loom as the predecessor RA770, upgrading and installation are simple with RA800.

Advanced Audio Performance

• Audio Streaming with Wi-Fi - Built-in Wi-Fi connectivity, combined with multiple-input multiple-output technology, offers a seamless high-fidelity listening experience for AirPlay audio streaming.

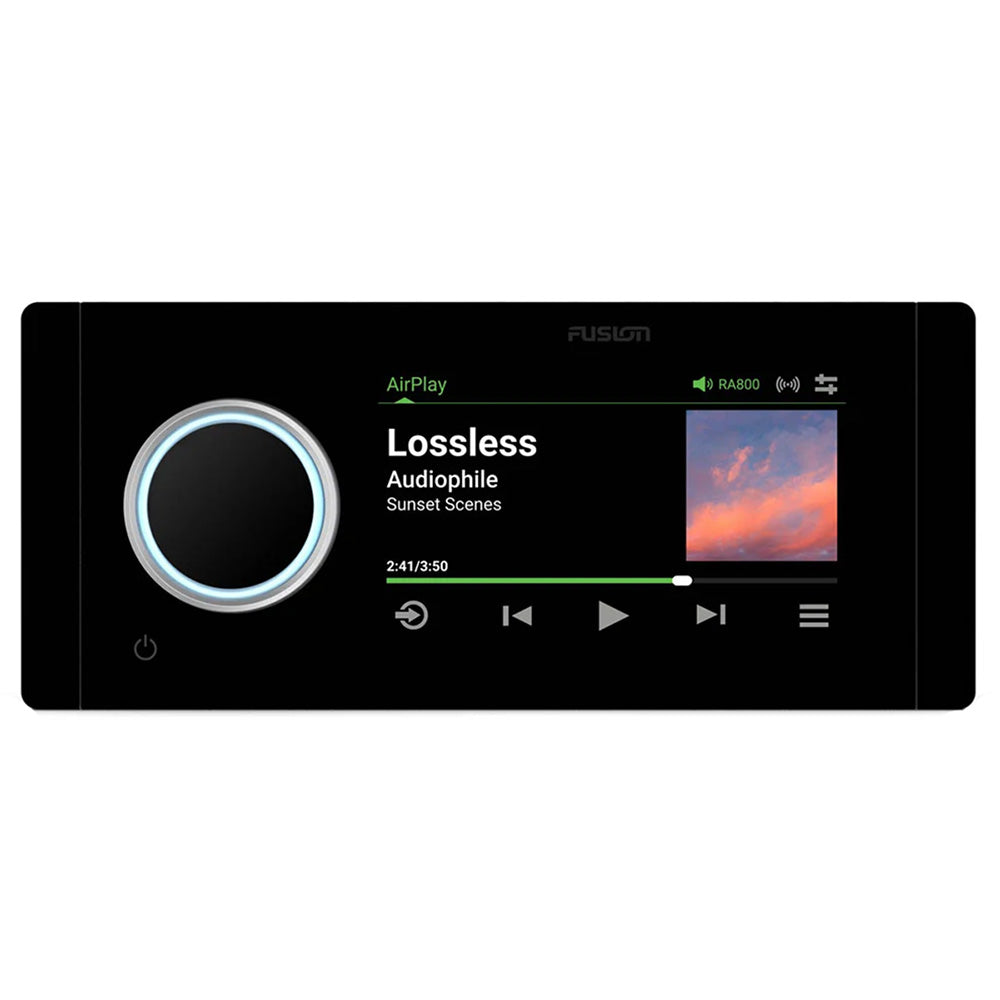

• One-Piece Glass Touch Display - An intuitive menu-driven interface and edge-to-edge glass touchscreen let you simply tap or swipe the display for easy control of stereo functions.
• Modern Design and Aesthetics - The stereo’s black glass faceplate can be flush mounted to blend seamlessly with other electronics at the helm.
• Engineered for Harsh Marine Environments - Built on the True-Marine™ design philosophy from Fusion, RA800 has an IPX6- and IPX7-rated water-resistant front panel and has been tested to a high level of protection against salt fog, temperature, vibration, and UV exposure.
• Digital Signal Processing (DSP) - A technically superior listening experience made simple, Fusion DSP optimizes the audio signal delivered to your Fusion system to produce superior sound quality at all volume levels, in every listening environment.
• Easy-To-Install DSP Profiles - With the free Fusion Audio app on your smartphone, you can set up the preconfigured DSP profiles once and enjoy high-quality audio customized for your listening environment.

A Superior Listening Environment

• Stereo Grouping - Grouping allows you to link up multiple Apollo Series stereos connected to the same network and play the same audio source synchronized across all stereos.
• Volume Control - Scroll through available zones on your boat, and enjoy independent volume control, or select ALL volume to adjust a group of stereos at once.
• Power Options - Power options allow you to turn on any connected Apollo Series stereo in standby mode on the Fusion stereo network remotely from another Apollo Series stereo.
• Home Zone - Home Zone is the physical zone in which the stereo is installed on board your boat. After adjusting audio in another zone, the stereo defaults to control of the Home Zone after a period of inactivity.
• Over-The-Air Software Updates - Updates are available from your compatible smartphone or device via the free Fusion Audio app. Apollo Series stereos are easy to keep up to date².
• Speed vs. Volume - Selecting Speed vs. Volume from the stereo’s Settings menu enables audio volume to be automatically adjusted based on your boat’s speed³. Faster equals louder; slower equals lower volume.

What's In The Box?

• Fusion Apollo™ MS-RA800 marine stereo
• Mounting gasket
• Four 8-gauge self-tapping screws
• Two screw covers
• Power and speaker wiring harness
• Auxiliary-in, line-out, and subwoofer-out wiring harnesses
• 6 ft (2 m) drop cable for the NMEA 2000® network
• Dust cover
• Documentation

Specifications:

General:

• Height: 3.23"
• Width: 7.56"
• Depth: 4.7"
• Weight: 1.37 lbs
• Control Surface Dust/Water Rating (When Properly Installed): IPX6 and IPX7
• Rear Dust/Water Rating (When Properly Installed): IPX3
• Operating Temperature Range: -20 to 70° C
• Current Draw (Max): 25 A at 14.4 V; 15 A at 28.8 V
• Warranty: 3-Years

Networking:

• NMEA 2000® LEN: 2 (65 mA)
• Bluetooth® Wireless Range: up to 30 ft
• ANT® Wireless Range: Up to 10 ft
• Wireless Frequencies/Protocols: WiFi 2.4Ghz : +12dBm nominal MIMO 2 x 2, BLUETOOTH®: 2.4 GHz @ +10 dBm nominal, ANT®: 2.4GHz 0dBm nominal

Audio:

• Rated Continuous (RMS) Power: 40w x 4

Electrical Features:

• Power Input: 10.8 to 32 Vdc
• Compass-Safe Distance: 5.9"

Stereo Features:

• Display Size: 4.3"
• Display Type: capacitive touchscreen color LCD
• Display Resolution: 800 x 400
• Optically Bonded Display: Yes
• Built-In Amplifier: Class D (4 Ohm)
• Built-In Wi-Fi®: Yes
• Built-In Digital Signal Processing (DSP): Yes (with custom DSP profile setup using Fusion-Link™ app)
• Stereo Networking: Yes (Wired and wireless)
• Fusion-Link™ Control: Yes (MFD, smart device, and Garmin watch)
• Multi-Zone™ Technology: 4 zones
• Bluetooth® Wireless Technology: Yes
• ANT® Wireless Technology: Yes

Sources:

• Supported Sources: AM, FM, BLUETOOTH®, Apple AirPlay® 2, HDMI ARC, USB audio, iPhone, iPod, AUX x2
• Supported Audio Formats (USB): MP3, AAC, M4A, FLAC, WAV

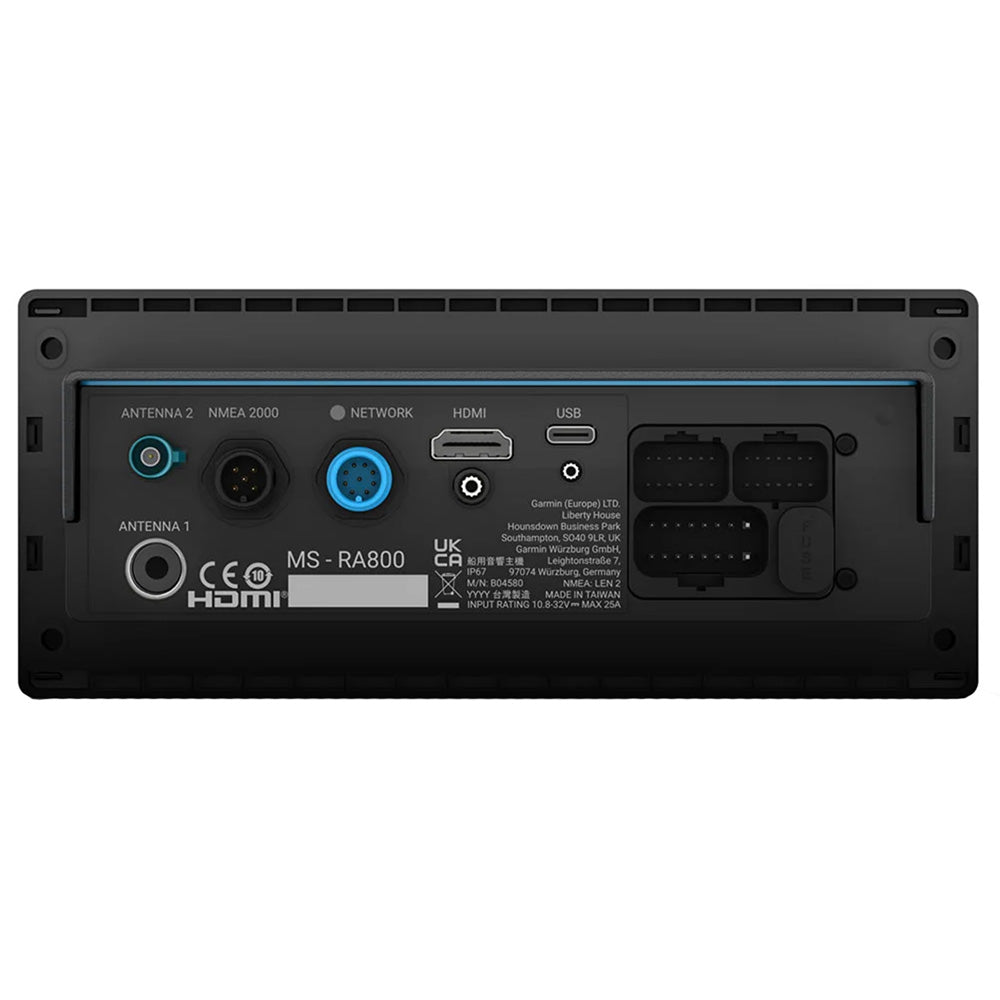

Connections:

• Auxiliary Inputs (RCA): 2
• HDMI ARC Ports: 1
• Ethernet Ports: 1
• NMEA 2000® Ports: 1
• USB 2.0 Ports: 1 (USB-C)
• AM/FM Ports (Motorola Antenna Connector): 1
• Speaker Connections: 4 (2 zone amplified)
• RCA Pre-Out (Left, Right, and Subwoofer - Requires External Amplification): 4 zones
• Line Out (Requires External Amplification): 4 (L + R per zone)
• Subwoofer Out (Requires External Amplification): 4 (1 mono output per zone)

^{1Compared to predecessor RA770 model}

^{2Available when connected to a wireless network router, Garmin MFD or Apollo Series stereo network enabled with Wi-Fi technology}

^{3Requires connection to an NMEA 2000 network with an appropriate speed sensor installed}

Specifications:

• Auxiliary Input: Yes
• Bluetooth: Yes
• Color: Black
• Cover Included: Yes
• NMEA 2000: Yes
• Power - Output (Watts): 40w x 4
• RCA Input: No
• RCA Output: Yes
• SiriusXM Ready: Yes
• Wired Remote Capable: Yes
• Wireless Remote Capable: Yes
• Box Dimensions: 7"H x 7"W x 10"L WT: 3.4 lbs
• UPC: 753759330361
