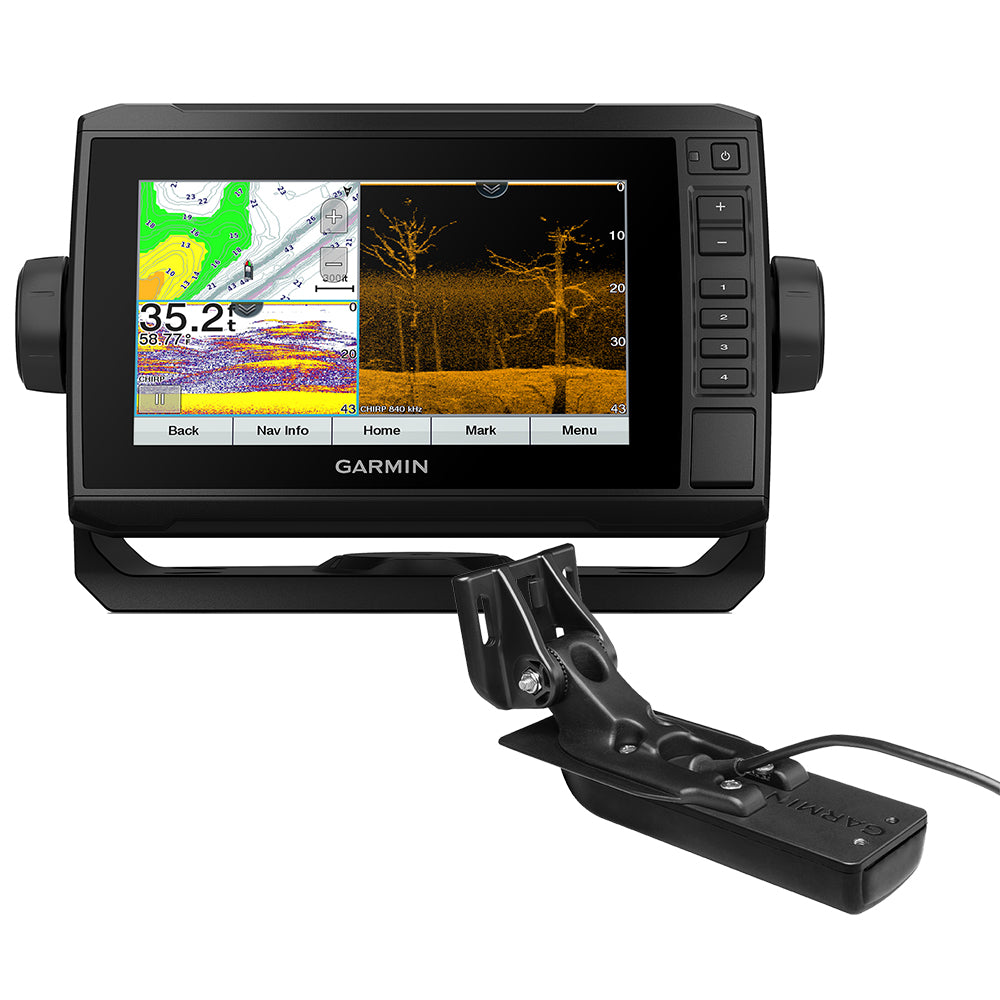

Garmin ECHOMAP UHD 73cv US LakeV g3 w/GT24UHD-TM Transducer *Remanufactured [010-N2334-01]

ECHOMAP™ UHD 73cv US LakeVü g3 with GT24UHD-TM Transducer *Remanufactured

Find more fish using the ECHOMAP™ UHD 73cv combo with a bright, sunlight-readable 7” touchscreen with keyed assist. The included GT24 transducer provides Ultra High-Definition ClearVü scanning sonar, so you get a crystal-clear image of what is below your boat, and Garmin high wide CHIRP traditional sonar delivers remarkable target separation. Preloaded LakeVü g3 inland maps with integrated Navionics® data cover more than 17,000 lakes with up to 1’ contours. It features a quick-release bail mount, making it easy to remove and take with you. NMEA 2000® and NMEA 0183 network support provide you with engine data, sensor connection, autopilot integration, FUSION-Link™ audio system, and more. ECHOMAP™ UHD 73cv is even compatible with the Force™ trolling motor for full control of the motor from the screen, plus the ability to route to waypoints, follow tracks, and more.

Features:

• Bright, sunlight-readable 7” touchscreen with keyed assist
• Includes GT24 transducer for Ultra High-Definition ClearVü scanning sonar and Garmin high wide CHIRP traditional sonar
• Preloaded LakeVü g3 inland maps with integrated Navionics® data cover more than 17,000 lakes with up to 1’ contours
• Supports Panoptix™ all-seeing sonar, including Panoptix LiveScope™ sonar
• Sonar sharing capabilities with other ECHOMAP™ Plus, ECHOMAP UHD, and ECHOMAP Ultra units
• NMEA 2000® and NMEA 0183 network support for autopilot, FUSION-Link™ audio system, and engine data
• Quick-release bail mount for fast and easy mobility
• Compatible with Force™ trolling motor for full control of the motor from the screen plus the ability to route to waypoints, follow tracks, and more

Included Transducer

This chartplotter comes with a GT24 transducer for Ultra High-Definition ClearVü scanning sonar, which shows you a crystal-clear image below your boat. Plus, you get Garmin high wide CHIRP traditional sonar for remarkable target separation.

Sonar Support

This chartplotter supports a variety of Garmin transducers (sold separately), including the Panoptix LiveScope™ scanning sonar system, which lets you see all around your boat in real-time.

Preloaded Mapping

Experience unparalleled coverage and detail with preloaded LakeVü g3 inland maps featuring integrated Navionics® data that covers more than 17,000 lakes with up to 1’ contours.

Quickdraw Contours

Create personalized fishing maps on-screen with 1’ contours. Keep the data to yourself, or share it with the Quickdraw Community on Garmin Connect™.

NMEA 2000® & NMEA0183 Networks

Connect to autopilots, digital switching, weather, FUSION-Link™ audio system, media, VHF, AIS, and more from one screen.

ActiveCaptain® App

Built-in Wi-Fi® connectivity pairs with the free all-in-one mobile app for access to the OneChart™ feature, smart notifications¹, software updates, Garmin Quickdraw™ Community data, and more.

Network Capable

If you have multiple compatible ECHOMAP UHD or ECHOMAP Ultra devices on your boat, you can share information — such as sonar, user data, and charts — among them (7” and 9” models only).

Force™ Trolling Motor Capability

Take control of the most powerful and efficient trolling motor available², route it to waypoints, follow tracks, and more from the screen of your chartplotter.

Connections:

• Garmin Marine Network Ports: 1
• NMEA 2000 Compatible: Yes
• Transducer Pin Numbers: 12
• NMEA 0183 Input Ports: 1
• NMEA 0183 Output Ports: 1
• Video Input Ports: None
• Video Output Ports: None
• Wireless Connectivity: Yes

In The Box:

• ECHOMAP UHD 73cv with BlueChart g3 for U.S.
• GT24UHD-TM transducer
• Power/data cable
• Tilt mount with quick-release cradle
• Flush mount
• Protective cover
• Hardware
• Documentation

¹ When paired with a compatible smartphone

² In compliance with ISO standard 13342

Wi-Fi is a registered trademark of the Wi-Fi Alliance.

Specifications:

• Cartography Brand: Garmin
• Included Transducer: GT24
• Screen Size: 7"
• Touchscreen: Yes
• Transducer Included: Yes
• Box Dimensions: 8"H x 10"W x 13"L WT: 6.6 lbs
• UPC: 753759309107
