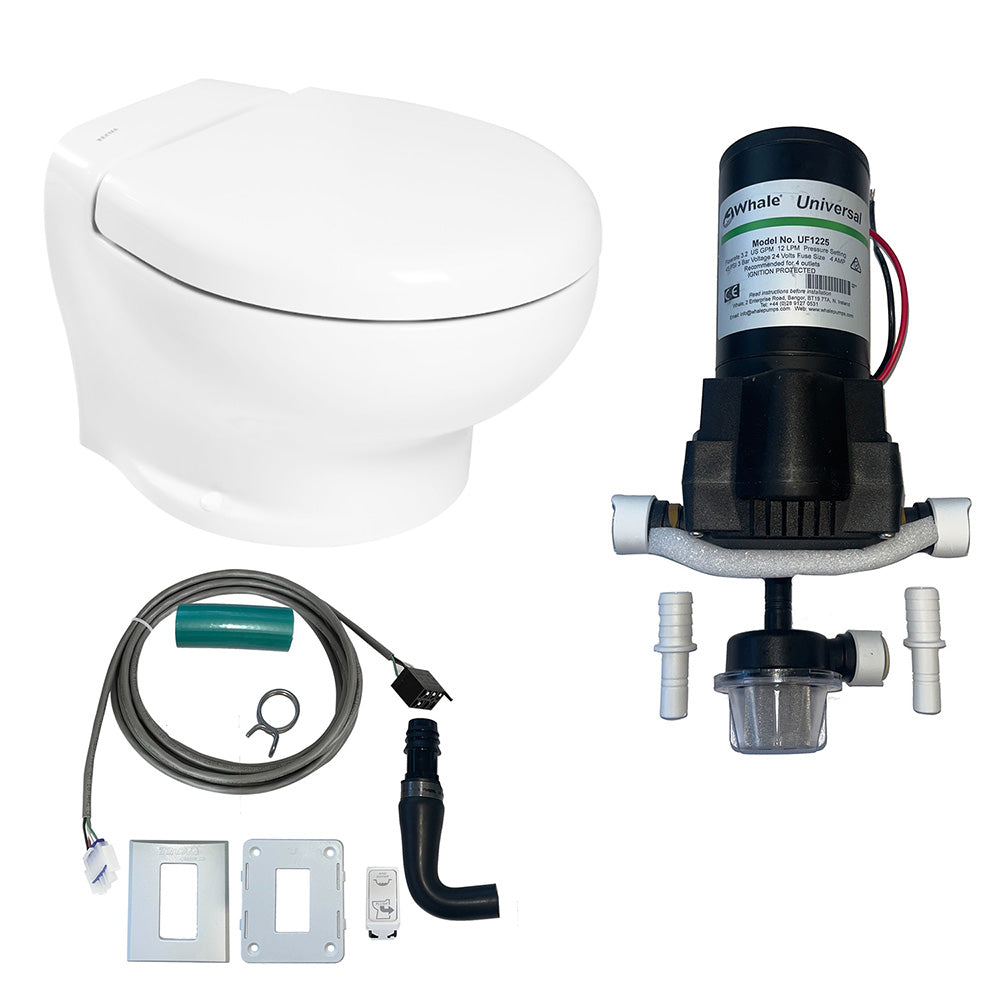

Thetford Nano Eco Compact Toilet Raw Water Kit w/Inlet Pump - 24V [T-NAN024PW/E/NA-RWKIT]

Nano Eco Compact Toilet Raw Water Kit with Inlet Pump - 24V

Nano Eco Compact Toilet - 24V

The Tiny Turbo Toilet! From the experts in macerating toilets, Nano toilet utilizes Turbine Technology to produce a powerful, clog-resistant flush. This model is the ultimate combination of a highly efficient marine toilet and the smallest design capable of offering the same comfort as bigger units. It’s the result of a strong relationship with the market and fulfills new requirements for vessels below 50′ (45m). The Thetford Marine product development team has created an extremely elegant design, but also very flexible to install, thanks to its compact size.

The performance of the macerator pump meets all quality standards, while the technology inside the toilet has been further developed to keep the sound emission to the lowest level possible, while limiting the water and electrical consumption to minimal levels. The installation, plumbing and wiring is easy and fast, with virtually no maintenance. The toilet can be operated in combination with two different control panels: Eco rocker switch and Premium Plus.

Raw Water Inlet Pump - 24V

Thetford's 24V raw water pump delivers 3.2 gallons of water per minute with the ability to supply 3-4 outlets.

15mm quick-connect port fittings are suitable for 15mm rigid tubing systems. An included fine, 50 mesh inlet filter, with its own 15mm port, connects directly to the pump inlet. Also included are (2) WX1584 quick-connect fittings for 1/2" flexible hose, and (2) WX1587 1/2" BSP male threaded quick-connect fittings for threaded attachments.

Raw Water System Eco Kit with Rocker Switch, Wire Harness & Fitting

12V Raw Water Flush Kit is specifically designed for EasyFit, Nano, and Compass Eco Toilet models. This kit is essential for vessels that already have a pressurized raw water system onboard, providing an efficient raw water flushing solution without the need for a pump (if a pump is needed, refer to Thetford part number T-PF.P27 for 12V applications and T-PF.P28 for 24V applications). It's a perfect choice for those who wish to conserve fresh water on their boat.
